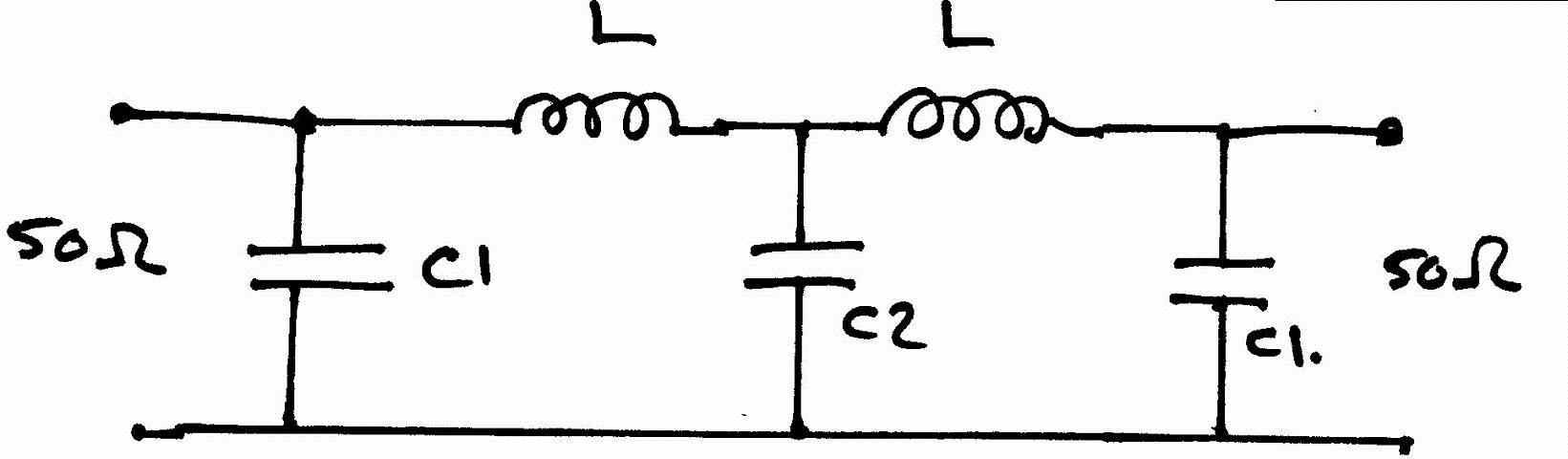

100w PA unit - Low pass filter details
Capacitors all silver mica
Inductors on T80-2 and T80-6 cortes from Amidon etc
Band |
C2 |
C1 |
L |
160 |
2200pF |
1500pF |
30
turns 22swg on T80-2 |
80 |
1500pF |
820pF |
21
turns 20swg on T80-2 |
40 |
820pF |
430pF
(390+39) |
16
turns 20swg on T80-2 |
30 |
560pF |
330pF |
13
turns 20swg on T80-2 |
|
20 |
390pF |
220pF |
12
turns 20swg on T80-6 |
15/17 |
280pF
(200+82) |
150pF |
9
turns 20swg on T80-6 |
10 |
180pF |
100pF |
8
turns 20swg on T80-6 |
